Stainless steel tanks for wine Mod. FCG PNEUMATIC SYSTEM

Scheda tecnica

Modello
 FCG Oenological System
Capacità
 Small
Categoria
1. Wine

05. Stainless steel tanks for wine Mod. FCG PNEUMATIC SYSTEM  – AISI 304

Tank pneumatic system with conical bottom: suitable for wine making and wine storage. The domed bottom is very easy to clean.

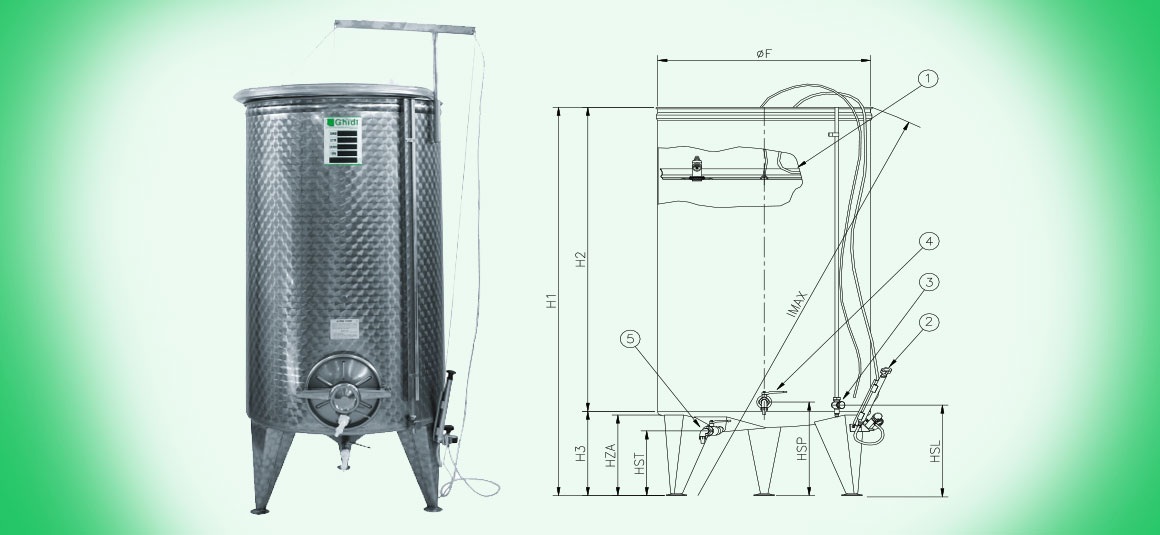

Standard Equipment
  1. Float pneumatic system
  2. Kit pneumatic system
  3. Level gauge
  4. Gate for clear removal 1″ with valve 1″ Ghidi inox
  5. Gate for complete wasting-pipe with valve 1″ Ghidi inox







Cod. NO door Cod. door L. ØF H1 H2 H3 HSL HSP HST Zampe HZA IMAX
80300 ****** 300 620 1410 1000 410 440 455 315 3 390 1500
80400 80407 400 720 1410 1000 410 440 455 315 3 390 1525
80500 80507 500 720 1660 1250 410 440 455 315 3 390 1755
80600 80607 600 720 1910 1500 410 440 455 315 3 390 1995
80800 80807 800 920 1660 1250 410 440 455 315 3 390 1810
81000 81007 1000 920 1910 1500 410 440 455 315 3 390 2045
81500 81507 1500 1160 2160 1500 405 435 435 215 3 400 2115
82000 82007 2000 1310 2165 1500 410 440 440 220 3 400 2170





Stainless steel tanks for wine – Special fitting
  • DoorØ 300 mm.
  • Every kind of valves
  • Wine taster Cod. 7090
  • Protection Sheet level Cod. 7092 Gauge per meter
  • H legs mm.600 – H legs mm.500 – Adjustble feets
  • Float level arm



Special fittings
