01. Stainless Steel storage Tank Mod. FCGS for wine

Scheda tecnica

Modello
 FCGS WINE STORAGE
Capacità
 BIG
Categoria
1. Wine

01. Stainless Steel storage Tank Mod. FCGS for wine

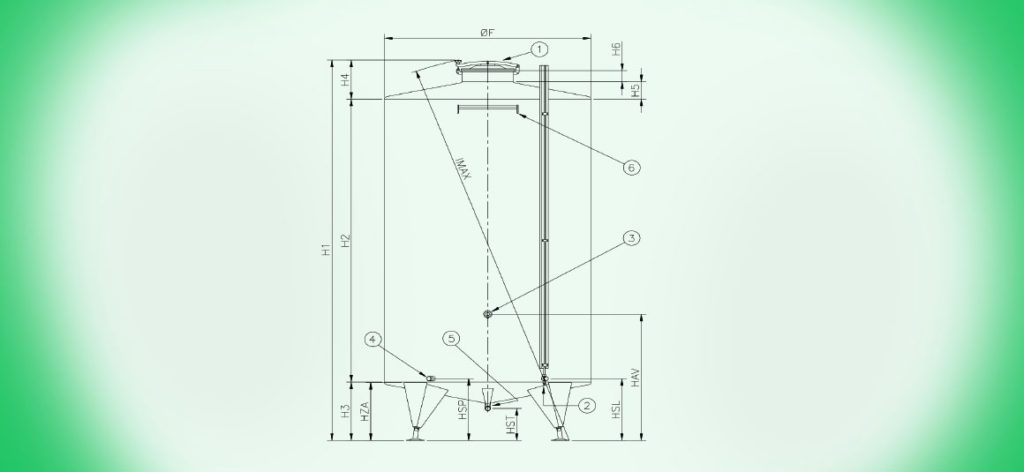

Standard Equipment
  1. Cover with bolt Ø 400 mm.
  2. Level gauge with protection sheet
  3. Wine taster
  4. Gate for clear removal (to specify Ø)
  5. Gate for complete wasting-pipe (to specify Ø)
  6. Ladder support

COD. L. ØF H1 H2 H3 H4 H5 H6 HSL HAV HSP HST LEGS HZA IMAX
FCGS2500A 2500 1310 2695 1875 515 305 115 100 615 1215 545 325 3 reg. 510 2735
FCGS3000A 3000 1310 3070 2250 515 305 115 100 615 1215 545 325 3 reg. 510 3110
FCGS3000B 3000 1600 2360 1500 515 345 155 100 615 1215 545 280 4 reg. 510 2520
FCGS4000A 4000 1600 2860 2000 515 345 155 100 615 1215 545 280 4 reg. 510 2995
FCGS5000A 5000 1600 3360 2500 515 345 155 100 615 1215 545 280 4 reg. 510 3475
FCGS5000B 5000 1800 2860 2000 515 345 155 100 615 1215 545 280 4 reg. 510 3005
FCGS6000A 6000 1600 3860 3000 515 345 155 100 615 1215 545 280 4 reg. 510 3960
FCGS6500A 6500 1800 3360 2500 515 345 155 100 615 1215 545 280 4 reg. 510 3485
FCGS8000A 8000 1800 3860 3000 515 345 155 100 615 1215 545 280 4 reg. 510 3970
FCGS8000B 8000 2100 3395 2500 530 365 165 100 630 1230 560 275 4 reg. 525 3550
FCGS10000A 10000 2100 3895 3000 530 365 165 100 630 1230 560 275 4 reg. 525 4030
FCGS13500A 13500 2400 3920 3000 530 390 195 100 630 1230 560 255 5 reg. 525 4185




Special fittings
  • Round door Ø 400 mm code AP0003
  • Moulded oval door 300×435 only for diameter 1310 code AP0007
  • Oval door 304×400 mm. code AP0004
  • Sprinkler for pipe filling up must pipe Ø 40 code AZ1004 – pipe Ø 50 code AZ1005 pipe Ø 60 code AZ1006
  • Thermometer code AZ0041m
  • Rectangular door 420×310 mm. code AP0005
  • Rectangular door 530×400 mm. code AP0006
  • Every kind of valves *
  • Electric boiler
  • Moulded refrigerating band
  • Pipe filling up must – Ø 40 code AZ1001 – Ø 50 code AZ1002 – Ø 60 code AZ1003
  • Cover with 4 holdfast and level gauge with re-entry for nitrogencode AC0021
