Storage tank for olive oil Mod. FPS

Scheda tecnica

Modello
 FPS OIL STORAGE
Capacità
 BIG
Categoria
3. Olive Oil

Storage tank for olive oil Mod. FPS Stainless Steel AISI 304



Standard Equipment for Storage tank for olive oil Mod. FPS
  1. Cover with bolt Ø 400 mm.
  2. Level gauge with protection sheet
  3. Wine taster
  4. Gate for clear removal (to specify Ø)
  5. Ladder support

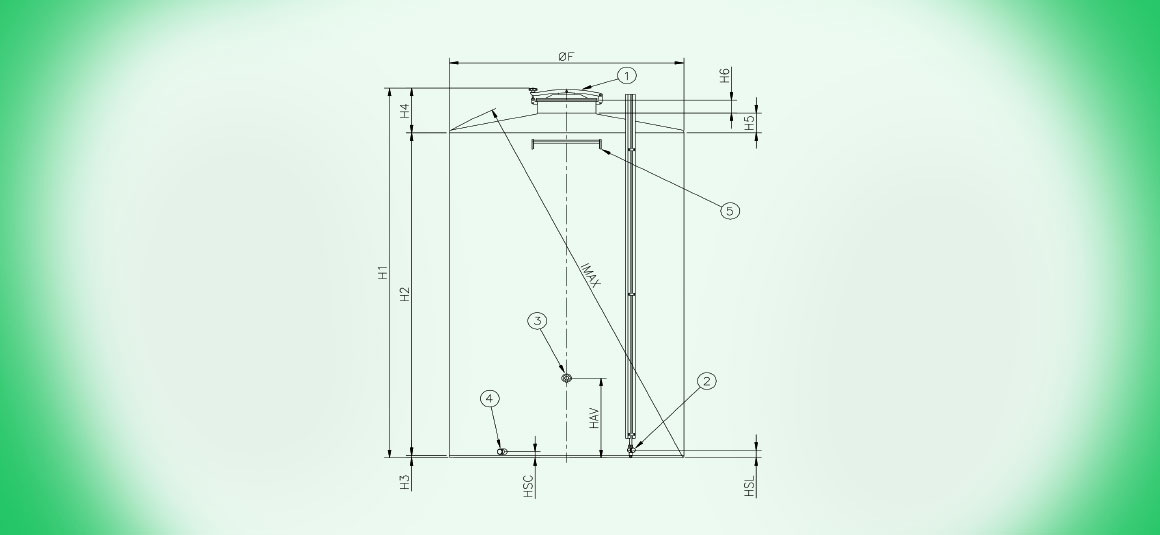

COD. L. ØF H1 H2 H3 H4 H5 H6 HSL HAV HSC IMAX
FPS2500A 2500 1310 2200 1875 20 305 115 100 100 720 50 2335
FPS3000A 3000 1310 2575 2250 20 305 115 100 100 720 50 2685
FPS3000B 3000 1600 1865 1500 20 345 155 100 100 720 50 2210
FPS4000A 4000 1600 2365 2000 20 345 155 100 100 720 50 2580
FPS5000A 5000 1600 2865 2500 20 345 155 100 100 720 50 3005
FPS5000B 5000 1800 2365 2000 20 345 155 100 100 720 50 2715
FPS6000A 6000 1600 3365 3000 20 345 155 100 100 720 50 3480
FPS6500A 6500 1800 2865 2500 20 345 155 100 100 720 50 3105
FPS8000A 8000 1800 3365 3000 20 345 155 100 100 720 50 3525
FPS8000B 8000 2100 2885 2500 20 365 165 100 100 720 50 3165
FPS10000A 10000 2100 3385 3000 20 365 165 100 100 720 50 3580
FPS13500A 13500 2400 3410 3000 20 390 195 100 100 720 50 3860

Special fittings for Storage tank for olive oil Mod. FPS
  • Door circ. Ø 400 mm.
    Cod. AP0003
  • Oval door moulded 300×435
    only for diameter 1310
    Cod. APOOO7
  • Oval door 304×400 mm.
    Cod. APOOO4
  • Sprinkler for pipe filling up must
    Pipe Ø 40 code AZ1004
    Pipe Ø 50 code AZ1005
    Pipe Ø 60 code AZ1006
  • Thermometer
    Cod. AZ0041
  • Rettangular door 420×310 mm.
    Cod. AP0005
  • Portella rettangolare 530×400 mm. Cod. AP0006
  • Every kind of valves*
  • Cover with 4 holdfast and level gauge with re-entry for nitrogen
    Cod. AC0021
  • Moulded refrigerating band*
  • Pipe filling up must
    Ø 40 Cod. AZ1001
    Ø 50 Cod. AZ1002
    Ø 60 Cod. AZ1003
  • Washing ball
    Cod. AZ0071
Special fittings
