Stainless steel wine storage tanks Mod. Danubio

Scheda tecnica

Modello
 Danubio WINE
Capacità
 SMALL
Categoria
1. Wine

09. Stainless steel wine storage tanks Model Danubio – AISI 304

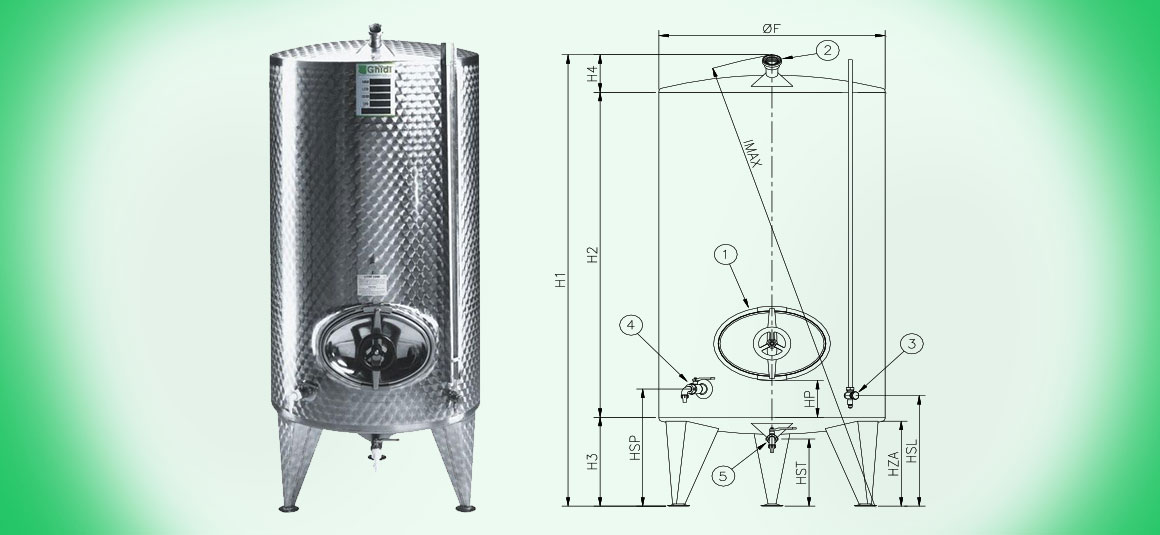

Standard Equipment
  1. Oval door 300X435
  2. Thread connector female DIN 11851/405 DN50
  3. Level gauge
  4. Gate for clear removal 1″ with valve 1″ Ghidi inox
  5. Gate for complete wasting-pipe with valve 1″ Ghidi inox





Cod. L. ØF H1 H2 H3 H4 HSL HSP HST HZA HP IMAX
60801 800 920 1835 1250 410 175 510 540 315 390 170 1840
61001 1000 920 2085 1500 410 175 510 540 315 390 170 2090
61501 1500 1160 2085 1500 405 175 510 540 315 400 170 2100
62001 2000 1310 2085 1500 405 175 510 540 315 400 170 2110
62501 2500 1310 2565 1875 515 175 510 540 415 510 170 2635
63001 3000 1310 2940 2250 515 175 510 540 415 510 170 3010

Tank model “Danubio”, excellent for wine making and storage of white wine.
The lower door is monoblock and the tank is very easy to clean.


Stainless steel wine storage tanks – Special fittings
  • Wine taster Cod. 7090
  • Protection sheet level Cod. 7092 Gauge per meter
  • Every kind of valves
Special fittings
